2021. 8. 9. 16:48

Custom HLSL tips UE4/Tips&Ugh2021. 8. 9. 16:48

Note++ HLSL User defined language :

...\AppData\Roaming\Notepad++\userDefineLangs

HLSL.xml

0.01MB

ush(hlsl) 파일 위치 : Epic Games\UE_4.26\Engine\Shaders

ex) Epic Games\UE_4.26\Engine\Shaders\test.ush

material의 custom shader 에서 호출 (shaders 폴더 경로 없이)

#include "/Engine/test.ush"
return 0;

Custom HLSL tips - Development Discussion / Rendering - Unreal Engine Forums

Custom HLSL tips

I’m not that experienced with shader development but needed to get an external shader working in UE4, without using a custom build of the engine. After banging my head against the wall for a few days, I got it all working. I’m posting a few things that

forums.unrealengine.com

Extending Custom HLSL / Custom Expressions - Development Discussion / Rendering - Unreal Engine Forums

Extending Custom HLSL / Custom Expressions

Until we see some more love for fast, custom HLSL in Unreal, here is a discussion of my recently discovered tricks to go beyond the current limits. #1 - Custom Functions Modifying the Engine’s USF files to define custom functions triggers an overhaul sha

forums.unrealengine.com

저작자표시 비영리 변경금지 (새창열림)

'UE4 > Tips&Ugh' 카테고리의 다른 글

[UE4.27]파티클이 TAA sample값이 64일때 렌더큐에서 프리징 되는 문제. (0)	2022.10.15
unreal engine pipeline schematics view (0)	2021.08.24
Custom Primitive Data (Material) (0)	2021.05.22
UE4 Shader code : GLSL to HLSL (0)	2021.05.09
UE4 - Particle emitter sorting problem (0)	2017.09.20

:

Posted by fx0275

2021. 8. 4. 01:47

-book : 후디니로 구현하는 알고리즘 디자인 Houdini/H_Practice2021. 8. 4. 01:47

-book : 후디니로 구현하는 알고리즘 디자인 (호리카와 준이치로) 번역서.

Junichiro Horikawa - YouTube

원서 : Amazon.co.jp: 堀川淳一郎: Books, Biography, Blog, Audiobooks, Kindle

1.Mandelbulb algorithm (fractal)

Mandelbulb (wiki)는 2009년에 구면 좌표를 사용하여 Daniel White와 Paul Nylander가 구성한 3차원 프랙탈입니다.

# Maldelbrot set (wiki)

기반지식:

복소평면(가우스평면),

복소평면상에서 만델브로 집합(2차원) > 프렉탈 도형

만델벌브 알고리즘(3차원) >복소평면 사용불가

[1.37] 극좌표계란 무엇인가? (기초) : 네이버 블로그 (naver.com)

극좌표계 > xy좌표계 대신 점 P를 (r, Θ) (원점에서의 거리(변위),각도)로 표현.

(-r, Θ) = (r, Θ+π) = (-r, Θ+(2n+1)π). (r, Θ) = (r, Θ+2nπ).

[1.41] 극좌표계 그래프 그리기 : 네이버 블로그 (naver.com)

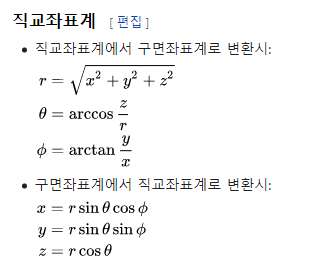

구면좌표계는 (r,Θ,θ)로 나타낸다.(wiki)

volume > volume wrangle > convert vdb(convert to sdf) > vdb smooth > convert vdb(convert to polygon)

2. Chladni Pattern

편평한 판위에 가루를 뿌리고 진동을 주면 일정하게 생기는 무늬모양.

주파수가 높을수록 더 정교한 패턴이 생긴다.

저작자표시 비영리 변경금지 (새창열림)

'Houdini > H_Practice' 카테고리의 다른 글

TWA study (0)	2021.04.07
Joy of Vex (0)	2021.03.09
note (0)	2017.05.08
Pyro FX (0)	2017.03.22

:

Posted by fx0275

2021. 8. 1. 02:37

VR Model AYAYI FX.CG2021. 8. 1. 02:37

株式会社Aww、中国Ranmai Technologyとのパートナーシップを締結。バーチャルヒューマン「AYAYI」を開発｜株式会社 Awwのプレスリリース (prtimes.jp)

株式会社Aww、中国Ranmai Technologyとのパートナーシップを締結。バーチャルヒューマン「AYAYI」を

株式会社 Awwのプレスリリース（2021年7月19日 09時07分）株式会社Aww、中国Ranmai Technologyとのパートナーシップを締結。バーチャルヒューマン[AYAYI]を開発

prtimes.jp

Aww Inc. A Virtual Human Company

Aww Inc.’s Official Website. Aww Inc. is Japan’s 1st Virtual Human Company & Creative Studios that produces the most popular Virtual Influencer/Virtual Model in Asia named “imma”

aww.tokyo

저작자표시 비영리 변경금지 (새창열림)

'FX.CG' 카테고리의 다른 글

Capcom Open Conference RE:2022 (0)	2022.10.20
VFX Learnings from 'Returnal' (0)	2022.09.13
GPU Driven Effects of The Last of Us Part II by Artem Kovalovs SIGGRAPH 2020 (0)	2021.05.09
GDC 2019 [Astro bot ] Clouds fx. (0)	2021.05.08
Scenify (preferred networks ) (Photo > 2d anime b.g) (0)	2021.04.24

:

Posted by fx0275

2021. 6. 8. 14:36

Unreal Engine 5 Lumen simple test UE4/Practice2021. 6. 8. 14:36

post process volume : lumen setup

Light: indirect value control

https://youtu.be/mdX0nUpozXg

저작자표시 비영리 변경금지 (새창열림)

'UE4 > Practice' 카테고리의 다른 글

Math for Artists _ Live from HQ _ Inside Unreal - 2019 (0)	2021.08.18
Mandelbrot set shader Test(UE4 material) (0)	2021.08.09
Distribution (0)	2018.05.04
Gradient map (0)	2017.05.20
Flow Map & Motion Vector (0)	2017.05.19

:

Posted by fx0275

2021. 5. 22. 15:36

Custom Primitive Data (Material) UE4/Tips&Ugh2021. 5. 22. 15:36

https://docs.unrealengine.com/en-US/RenderingAndGraphics/Materials/CustomPrimitiveData/index.html

material에서 custom primitive index 지정으로 drawcall을 줄일수 있다.

1개의 값 -> 1 index 사용.

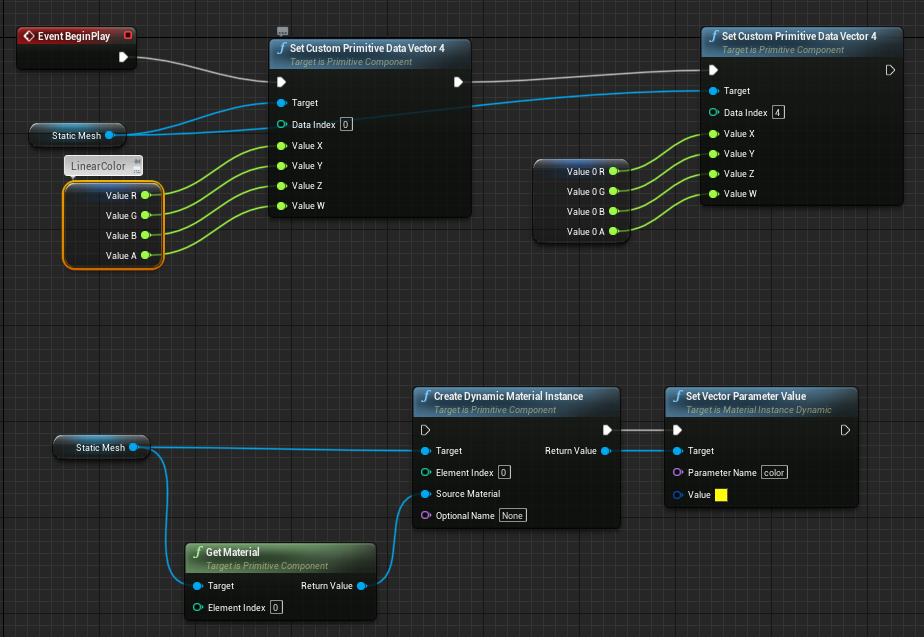

BP

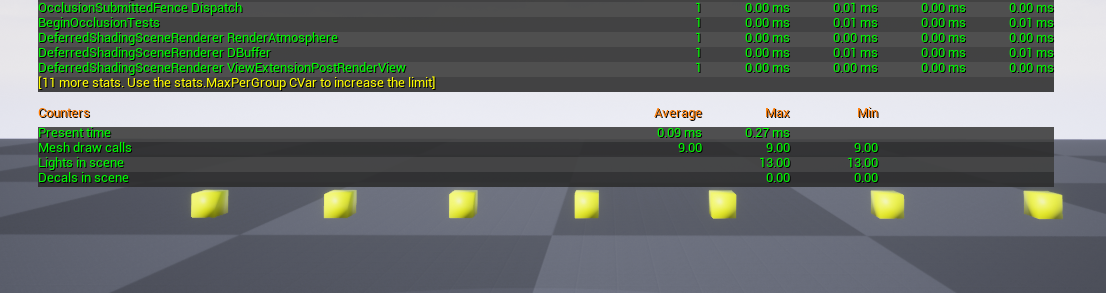

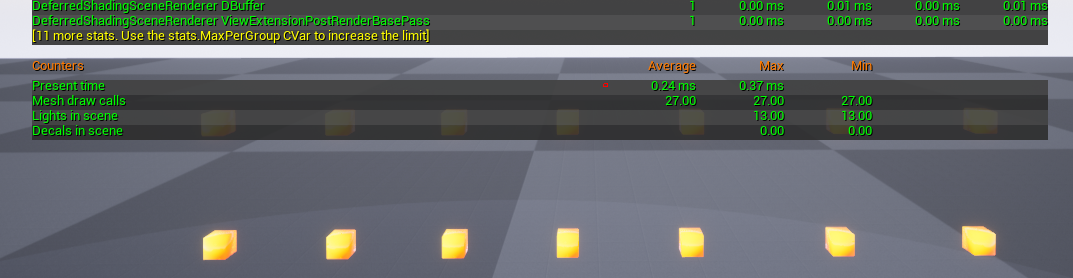

stat scenerendering 명령으로 mseh draw calls 확인.

dynamic material instance 사용

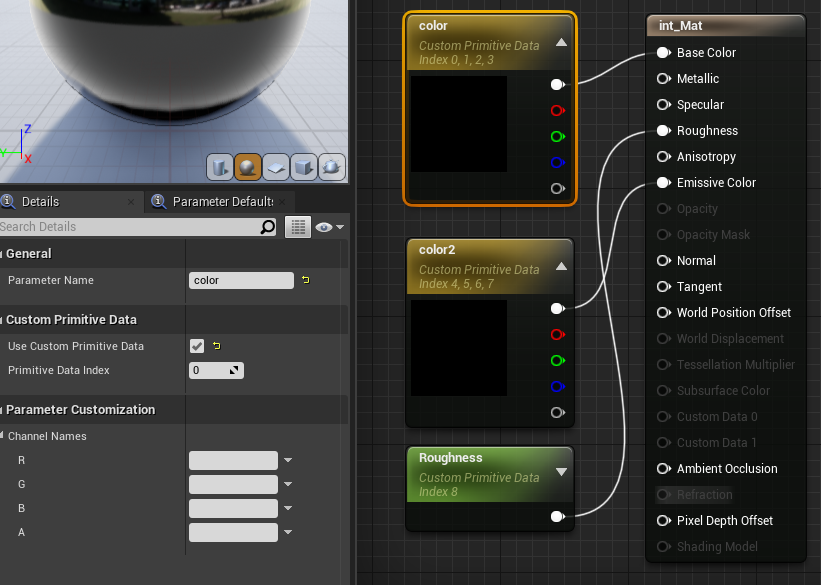

custom primitive data 사용

저작자표시 비영리 변경금지 (새창열림)

'UE4 > Tips&Ugh' 카테고리의 다른 글

unreal engine pipeline schematics view (0)	2021.08.24
Custom HLSL tips (0)	2021.08.09
UE4 Shader code : GLSL to HLSL (0)	2021.05.09
UE4 - Particle emitter sorting problem (0)	2017.09.20
Black Body Node (0)	2017.03.29

:

Posted by fx0275

2021. 5. 13. 00:50

3Dconnexion space navigator 포토샵 캔버스 회전 설정 방법 Tools2021. 5. 13. 00:50

space navigator에 포토샵 캔버스 회전 기능을 지원하지 않는다 :(

\Users\계정이름\AppData\Roaming\3Dconnexion\3DxWare\Cfg

폴더에서 photoshop.xml 편집.

포토샵의 canvas rotate는 rotate view tool (단축키 'R' hold) 기능으로 부드럽게 회전 시킬수 있다.

그리고 Alt+F13, Alt+F14 단축키로도 5도씩 회전 가능.

그렇지만 일반 키보드엔 F13,F14키가 없다.

그래서 매크로 기능이 있는 입력장치에서 사용 가능.

space navigator에서는 키 68,69 번이 F13, F14를 가르킴.

xml를 에디트해서 적용할때는 Stop 3Dxware / Start 3Dxware 재실행하면 된다.

예) 마우스 Z축 회전을 좌우로 나누어 적용.

        <Axis>
          <Enabled>true</Enabled>
          <Input>
            <ActionID>HIDMultiAxis_Rz</ActionID>
            <Min>0</Min>
            <Max>511</Max>
          </Input>
          <Output>
            <ActionID>KB_Keystroke</ActionID>
            <Scale>1.00</Scale>
            <MaxEventRate>40.00</MaxEventRate>
            <Modifiers>
              <Modifier>Alt</Modifier>
            </Modifiers>
            <KeyStroke>
              <Key>68</Key>
            </KeyStroke>
          </Output>
</Axis>
        <Axis>
          <Enabled>true</Enabled>
          <Input>
            <ActionID>HIDMultiAxis_Rz</ActionID>
            <Min>-512</Min>
            <Max>0</Max>
          </Input>
          <Output>
            <ActionID>KB_Keystroke</ActionID>
            <Scale>1.00</Scale>
            <MaxEventRate>40.00</MaxEventRate>
            <Modifiers>
              <Modifier>Alt</Modifier>
            </Modifiers>
            <KeyStroke>
              <Key>69</Key>
            </KeyStroke>
          </Output>
        </Axis>

저작자표시 비영리 변경금지 (새창열림)

'Tools' 카테고리의 다른 글

3dsmax 2023.1~2023.2 update (0)	2022.12.22
aws thinkbox wares free(krakatoa,frost,stroke,xmesh,deadline) (0)	2022.11.20
3DConnextion 3D mouse >> support Unreal Editor<< (0)	2021.05.12
Effect Texture Maker(Web) (0)	2021.05.11
Google Earth Studio (0)	2019.01.08

:

Posted by fx0275

2021. 5. 12. 13:53

3DConnextion 3D mouse >> support Unreal Editor<< Tools2021. 5. 12. 13:53

3dconnexion.com/us/drivers-application/3dxware-10/

Version 10.7.2 (r3314; March 17, 2021). Third public release of v. 10.7.

• Updated: 3DxUnreal v. 1.0.1 (r24; Mar 15, 2021).

• New: [WIN-812] Add support for "Landscape", "Foliage" and "Mesh Paint" editor mode commands in Epic Games Unreal Editor.

• New: [WIN-815] Add configuration file for Epic Games Unreal Editor. Changes default navigation mode to "Helicopter".

Version 10.7.1 (r3280; December 9, 2020). Second public release of v. 10.7

• New: Support Epic Games' Unreal Editor for engine versions 4.23, 4.24, 4.25 and 4.26.

• New: 3DxUnreal v. 1.0.0 (r16; Nov 19, 2020). See [WIN-718] and [WIN-742].

저작자표시 비영리 변경금지 (새창열림)

'Tools' 카테고리의 다른 글

aws thinkbox wares free(krakatoa,frost,stroke,xmesh,deadline) (0)	2022.11.20
3Dconnexion space navigator 포토샵 캔버스 회전 설정 방법 (0)	2021.05.13
Effect Texture Maker(Web) (0)	2021.05.11
Google Earth Studio (0)	2019.01.08
Substance SHARE - Material Layering - UE4 shader (0)	2018.11.14

:

Posted by fx0275

2021. 5. 11. 16:17

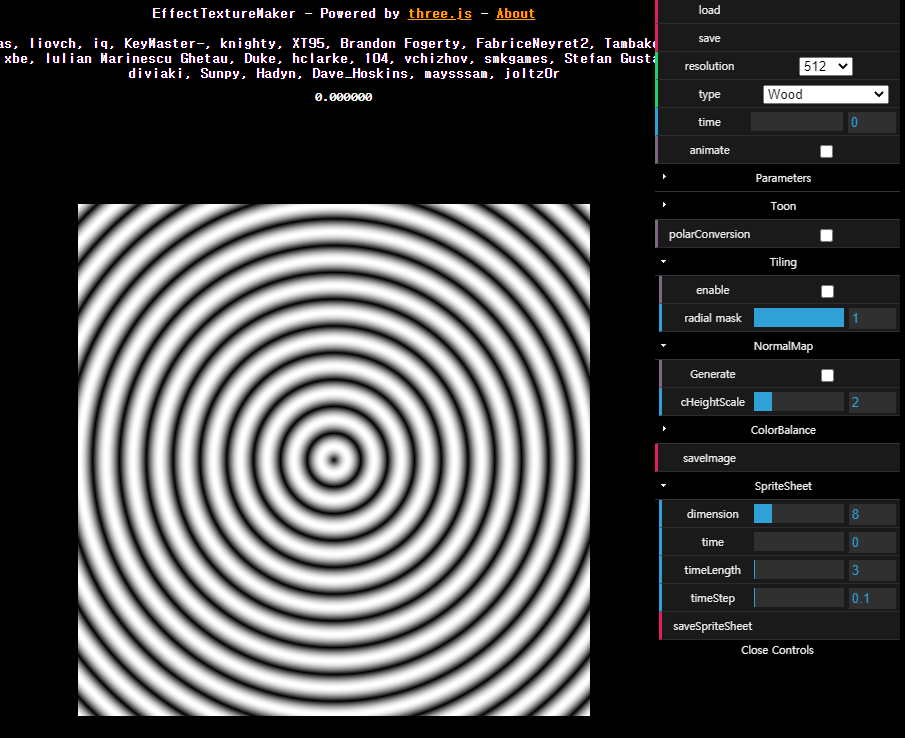

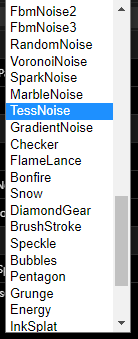

Effect Texture Maker(Web) Tools2021. 5. 11. 16:17

mebiusbox.github.io/contents/EffectTextureMaker/

저작자표시 비영리 변경금지 (새창열림)

'Tools' 카테고리의 다른 글

3Dconnexion space navigator 포토샵 캔버스 회전 설정 방법 (0)	2021.05.13
3DConnextion 3D mouse >> support Unreal Editor<< (0)	2021.05.12
Google Earth Studio (0)	2019.01.08
Substance SHARE - Material Layering - UE4 shader (0)	2018.11.14
Pixelator (0)	2018.07.29

:

Posted by fx0275

2021. 5. 9. 11:22

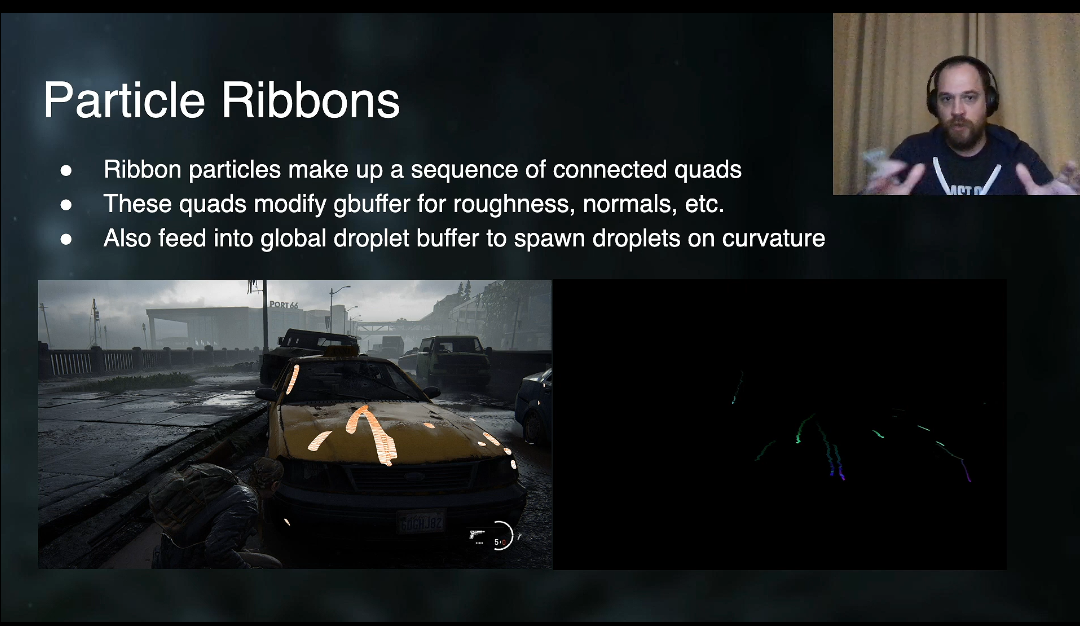

GPU Driven Effects of The Last of Us Part II by Artem Kovalovs SIGGRAPH 2020 FX.CG2021. 5. 9. 11:22

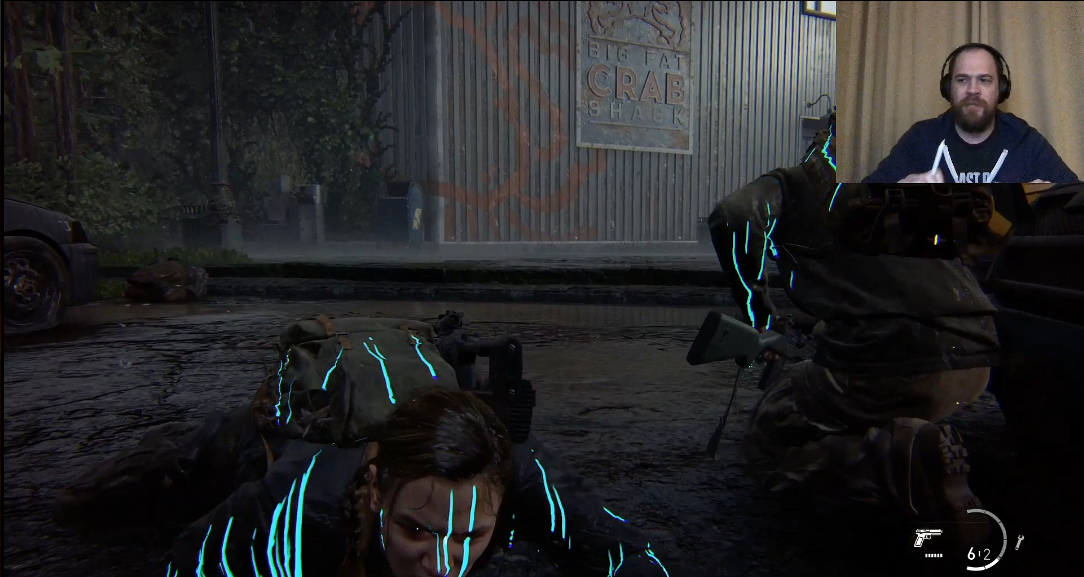

flowing raindrops

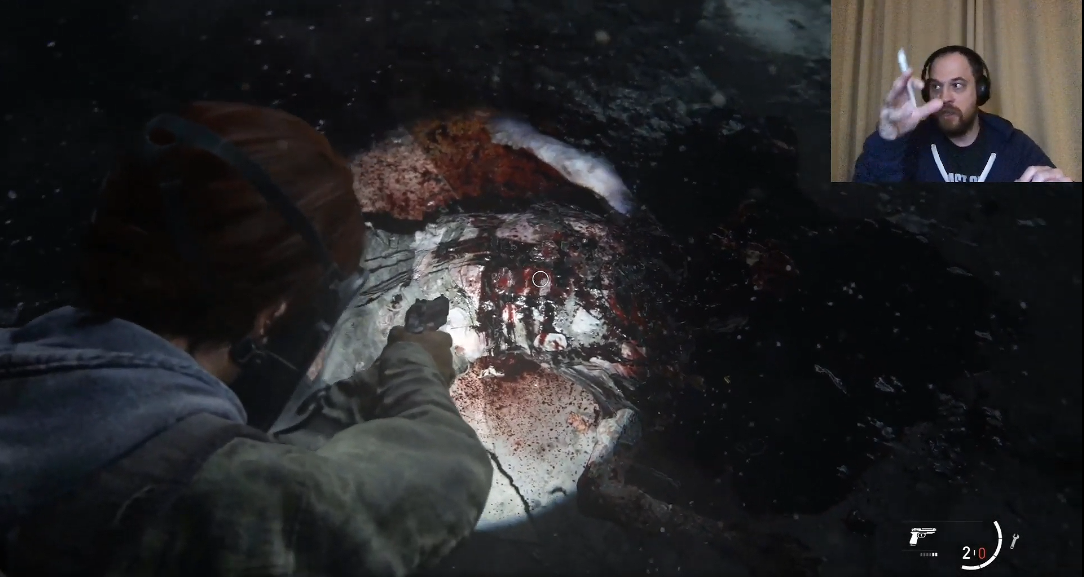

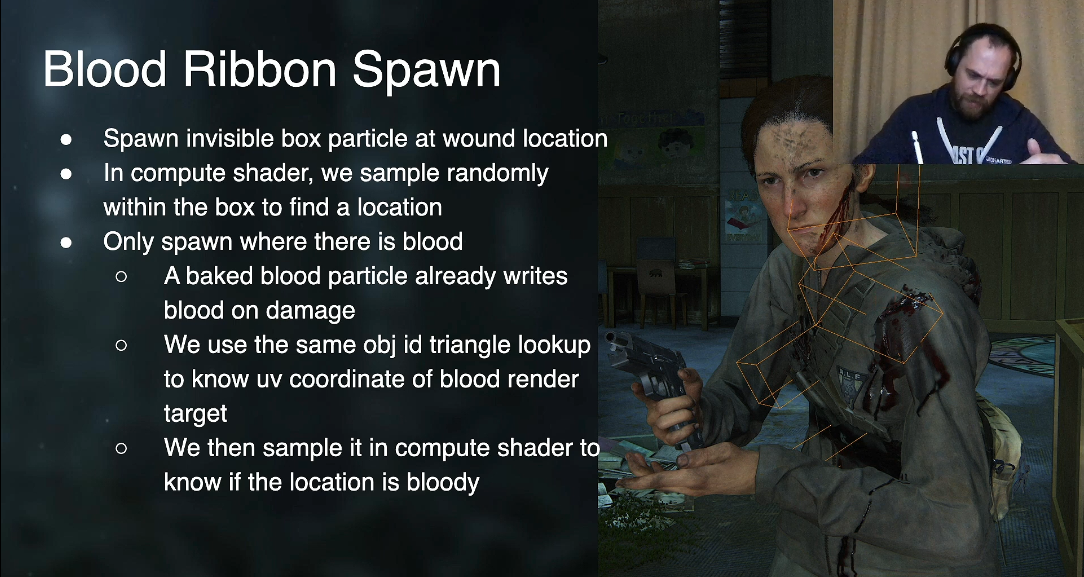

flowing blood

GPU Driven Effects of The Last of Us Part II by Artem Kovalovs SIGGRAPH 2020

www.youtube.com/watch?v=_bbPeCwNxAU

The Technical Art of The Last of Us Part II by Waylon Brinck and Steven Tang SIGGRAPH 2020

www.youtube.com/watch?v=tvBIqPHaExQ

Volumetric Fog of The Last of Us Part II by Artem Kovalovs SIGGRAPH 2020

www.youtube.com/watch?v=lo5VN2nOL98

Low-Level Optimizations in The Last of Us Part II by Parikshit Saraswat SIGGRAPH 2020

www.youtube.com/watch?v=CvS6rX-67wA

저작자표시 비영리 변경금지 (새창열림)

'FX.CG' 카테고리의 다른 글

VFX Learnings from 'Returnal' (0)	2022.09.13
VR Model AYAYI (0)	2021.08.01
GDC 2019 [Astro bot ] Clouds fx. (0)	2021.05.08
Scenify (preferred networks ) (Photo > 2d anime b.g) (0)	2021.04.24
만화 작화에서 밀도높은 배경을 묘사할때 3D활용을 하는 방법. (0)	2019.08.20

:

Posted by fx0275

2021. 5. 9. 09:12

UE4 Shader code : GLSL to HLSL UE4/Tips&Ugh2021. 5. 9. 09:12

ex)

vec3 r = (1.4 + 2.0*Smoothness) * Radii - Smoothness;

-> float3 r = (1.4 + 2.0*Smoothness) * Radii - Smoothness;

GLSL/HLSL/Metal 命令対応表

HLSL = DirectX (D3D8/D3D9/D3D10/D3D11/D3D12)
GLSL = OpenGL 2/3/4, OpenGL ES 2/3, Vulkan, SpliteKit (watchOS)
Metal = Metal (iOS/tvOS/macOS)

GLSLHLSLMetal

float	float	float
–	float1	–	HLSLのみ single vector 可能
vec2/vec3/vec4	float2/float3/float4	float2/float3/float4
mat3	float3x3	float3x3
mat4	float4x4	float4x4
mat3x4	float3x4	float3x4
int	int	int
ivec2/ivec3/ivec4	int2/int3/int4	int2/int3/int4
uint	uint	uint (unsigned int)
uvec2/uvec3/uvec4	uint2/uint3/uint4	uint2/uint3/uint4
bool	bool	bool
bvec2/bvec3/bvec4	bool2/bool3/bool4	bool2/bool3/bool4
lowp float	min10float	–	10bit fixed 以上
mediump float	half (min16float)	half	16bit fp 以上
highp float	float	float	32bit fp
double	double	–	64bit fp
highp int / uint	int / uint	int / uint	32bit int
mediump int / uint	min16int / min16uint	short / ushort	16bit int 以上
lowp int / uint	min12int	–	9bit int 以上
–	–	char / uchar	8bit int
vec3 x= vec3( a, b, c );	float3 x= { a, b, c };	float3 x= { a, b, c };
vec3 x= vec3( a, b, c );	float3 x= float3( a, b, c );	float3 x= float3( a, b, c );
float x[3]= float[]( a, b, c );	float x[3]= { a, b, c };	float x[3]= { a, b, c };
type( x )	(type)x	(type)x, type(x)	cast
matrix * matrix	mul( matrix, matrix )	matrix * matrix
vector * matrix	mul( vector, matrix )	vecotr * matrix
uniform	(uniform)	constant
in/out , varying/attribute	var : semantics	var [[qualifier]]	HLSL は in/out に function の引数と戻り値を使う。
builtin gl_* variables	system semantics SV_*	var [[qualifier]]

GLSLHLSLMetal

inversesqrt( x )	rsqrt( x )	rsqrt( x )	1/sqrt( x )
mix( x, y, s )	lerp( x, y, s )	mix( x, y, s )
clamp( x, min, max )	clamp( x, min, max )	clamp( x, min, max )
clamp( x, 0.0, 1.0 )	saturate( x )	saturate( x )
step( edge, x )	step( edge, x )	step( edge, x )	x < edge ? 0.0 : 1.0
smoothstep( min, max, x )	smoothstep( min, max, x )	smoothstep( min, max, x )	clamp( (x-min) / (max-min), 0.0, 1.0 )

GLSLHLSLMetal

sampler2D samplerobj	Texture2D<type> texobj	texture2d<type> texobj	sampler type
sampler2DShadow depthobj	Texture2D<type> depthobj	depth2d<type> depthobj	sampler type
v= texture( samplerobj, texcoord.. );	v= texobj.Sample( texcoord.. );	v= texobj.sample( sampler, texcoord .. )	sampling
v= texture2D( sampleobj, texcoord.. );	v= tex2D( sampler, texcoord.. );	–	legacy syntax
v= textureGather( depthobj, texcoord.. );	v= depthobj.SampleCmp( texcoord.. );	v= depthobj.sample_compare( … )	pcf shadow map

shaderGLSLHLSLMetal

vsh	in int gl_VertexID;	uint var_name : SV_VertexID ;	uint var_name [[vertex_id]];
	in int gl_InstanceID;	uint var_name : SV_InstanceID ;	uint var_name [[instance_id]];
	out vec4 gl_Position;	float4 … : SV_Position ;	float4 ... [[position]];
fsh/psh	out vec4 color; (GL2: gl_FragColor)	float4 … : SV_Target ; (DX9: COLOR)	half4 ... [[color(0)]];
fsh/psh	out float gl_FragDepth;	float … : SV_Depth ; (DX9: DEPTH)	float ... [[depth(less)]];

docs.microsoft.com/ko-kr/windows/uwp/gaming/glsl-to-hlsl-reference
